Brief introduction of CF impact crusher:
CF400 impact crusher is a new generation of impact crusher developed independently by Phoenix on the basis of the relatively new crusher principle, absorbing the core of the same type of international advanced equipment and combining the specific working conditions of domestic sand and stone industry. It adopts better manufacturing technology and unique structural design, and can process the products of equation cube, tension-free and crack-free, with good grain shape.
The working principle of CF impact crusher:
Phoenix impact crusher is a kind of crushing machine which uses impact energy to crush materials. When working, driven by the motor, the rotor rotates at a high speed, and when the material enters the action area of the plate hammer, it impacts and breaks up with the plate hammer on the rotor, then is thrown to the counterattack device again, and then bounces back from the counterattack lining board to the action area of the plate hammer to re-break. This process repeats. The material from large to small enters the first, second, third and counterattack chamber to break repeatedly until the material. It is crushed to the required size and discharged from the outlet. By adjusting the clearance between the counterattack frame and the rotor, the grain size and shape of the material can be changed.
Performance characteristics of CF impact crusher:
Phoenix CF400 impact crusher has unique structure, high chromium plate hammer, unique impact liner; suitable for hard rock crushing, high efficiency and energy saving; adjustable size of discharging material can simplify the crushing process, and has the advantages of large crushing ratio, high crushing efficiency, cubic product shape, selective crushing and so on.
CF impact crusher product parameters:
|
Model |
Rotor diameter(mm) |
Dimension of inlet and outlet (mm*mm) |
Maximum feed size (mm) |
Processing capacity (t/h) |
Motor power (kw) |
Weight(t) |
Outline size (mm) |
|
CF250/CF250C |
1200 |
1360×972 |
≤750 |
180-300 |
160-200 |
18 |
3515×2430×2828 |
|
CF400/CF400C |
1300 |
1360×975 |
≤950 |
280-500 |
200-250 |
21 |
3669×2430×2940 |
Note: If the parameters are updated, please contact us without further notice.

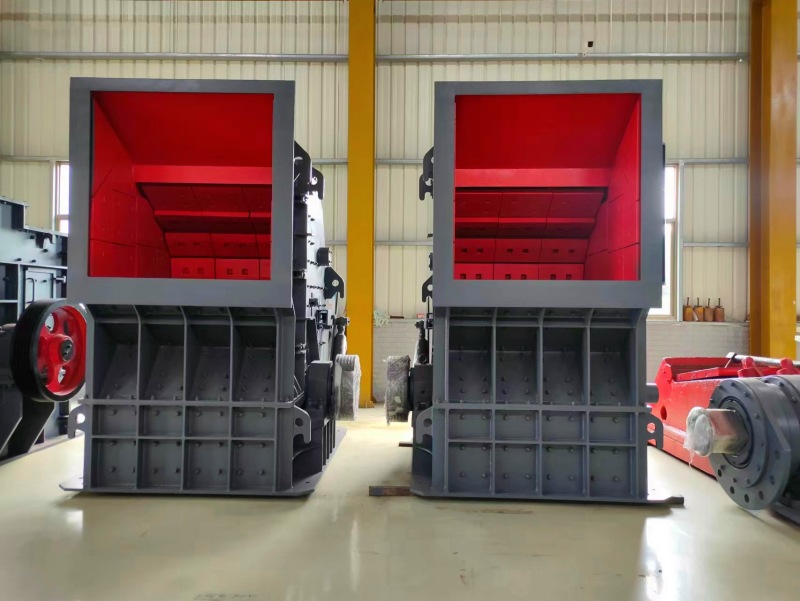

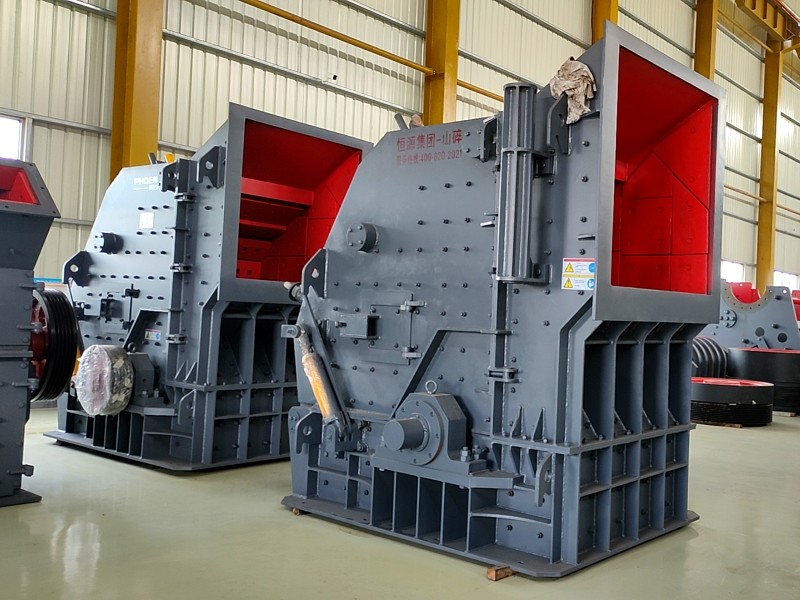

CF impact crusher factory photos:

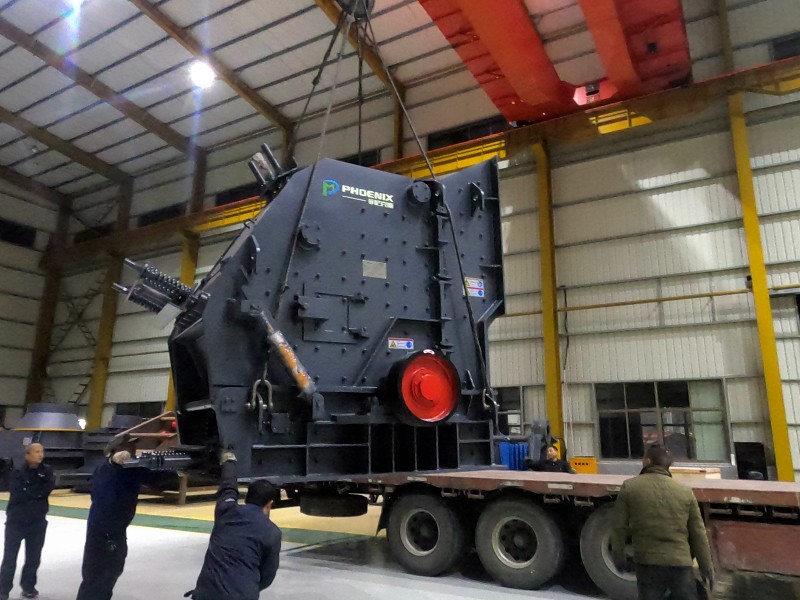

CF counterattack crusher shipment photos:
Field photos of CF impact crusher:
Counterattack Video:
Counterattack price:
The price is determined by the model chosen by the customer, so please call for it.
CF counterattack crusher purchase Telephone:+86-021-33781259 Email：info@shhyyj.com
