Introduction to pulse dust collector:

Hengyuan·China's pulse dust collector is a new high-efficiency pulse dust collector based on the HYCM type. The utility model has the advantages of high purification efficiency, large gas processing capacity, stable performance, long life of the filter bag, convenient operation and small maintenance workload.



Principle of pulse dust collector:

A dust hood is arranged in each place where the ash is placed, and the dust-containing gas is sent to the dust removing device through the pipeline gas path. After the gas-solid separation is performed, the dust is collected in the dust removing device, and the clean gas is introduced into the main pipe or The complete set of equipment that is directly discharged into the atmosphere is the dust removal system, and the dust collector is an important part of the system. From the point of view of ventilation and dust removal, dust is all small solid particles that can exist in the air in a floating state for a long time. It is a kind of dispersion system called aerosol, in which air is a dispersion medium and solid particles are a dispersed phase. A dust collector is a device that separates such small solid particles from an aerosol.



Pulse dust collector features:

1. It adopts the split-air pulse pulse blowing cleaning technology to overcome the shortcomings of the conventional pulse dust collector and the compartment back-flushing dust collector. It has strong cleaning ability, high dust removal efficiency, low emission concentration, low air leakage rate and low energy consumption. Low consumption, small floor space, stable and reliable operation, and good economic benefits.

2. Due to the use of compartmental air-stop pulse to spray cleaning, the purpose of thorough cleaning can be achieved by spraying once, so the cleaning cycle is prolonged, the energy consumption of cleaning is reduced, and the consumption of compressed gas can be greatly reduced. At the same time, the fatigue degree of the filter bag and the pulse valve is correspondingly reduced, thereby multiplying the life of the filter bag and the valve piece.

3. The upper bagging method is adopted. After the skeleton is taken out when the bag is changed, the dirty bag is put into the lower ash hopper of the box, and is taken out from the manhole, thereby improving the operating conditions of the bag changing. The cabinet adopts airtight design, good sealing performance, excellent sealing material for inspection door, kerosene leak detection during production, and low air leakage rate. The inlet and outlet ducts are compactly arranged and the airflow resistance is small.

4, inspection and change of bags can be carried out in the system without stopping the system fan, the system under normal operating conditions. The bag mouth of the filter bag adopts elastic expansion ring, which has good sealing performance and is firm and reliable. The filter bag keel adopts a polygonal shape, which reduces the friction between the bag and the keel, prolongs the life of the bag, and facilitates unloading the bag.

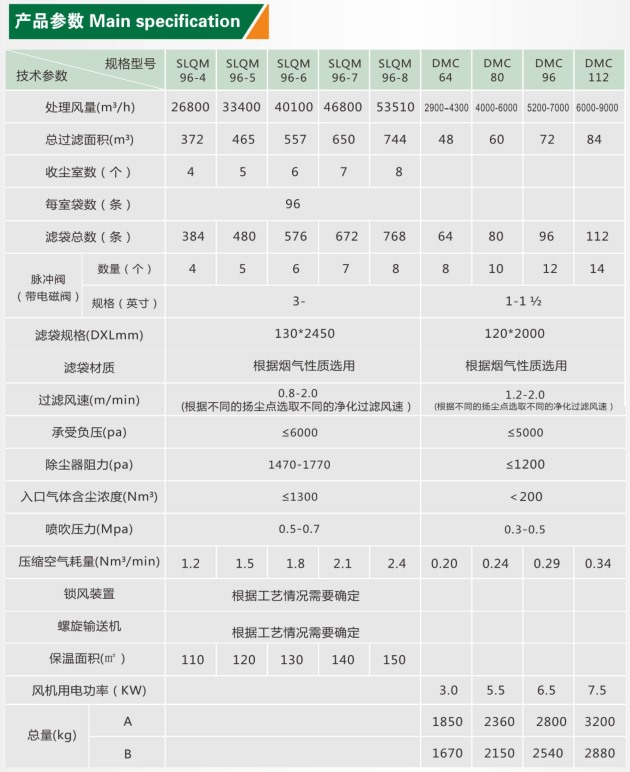

Pulse dust collector parameters:
